SPECIFICATIONS

Battery Included: No

Brand Name: WEIRU

CO: 0-1000PPM

Certification: CE,FCC,RoHS

DIY Supplies: Electrical

Gas Type: Methane

High-concerned chemical: None

Is Smart Device: Yes

Measurement Range: 0-100%LEL

Model Number: C2

Origin: Mainland China

With LCD Screen Or Not: Yes

Product Description

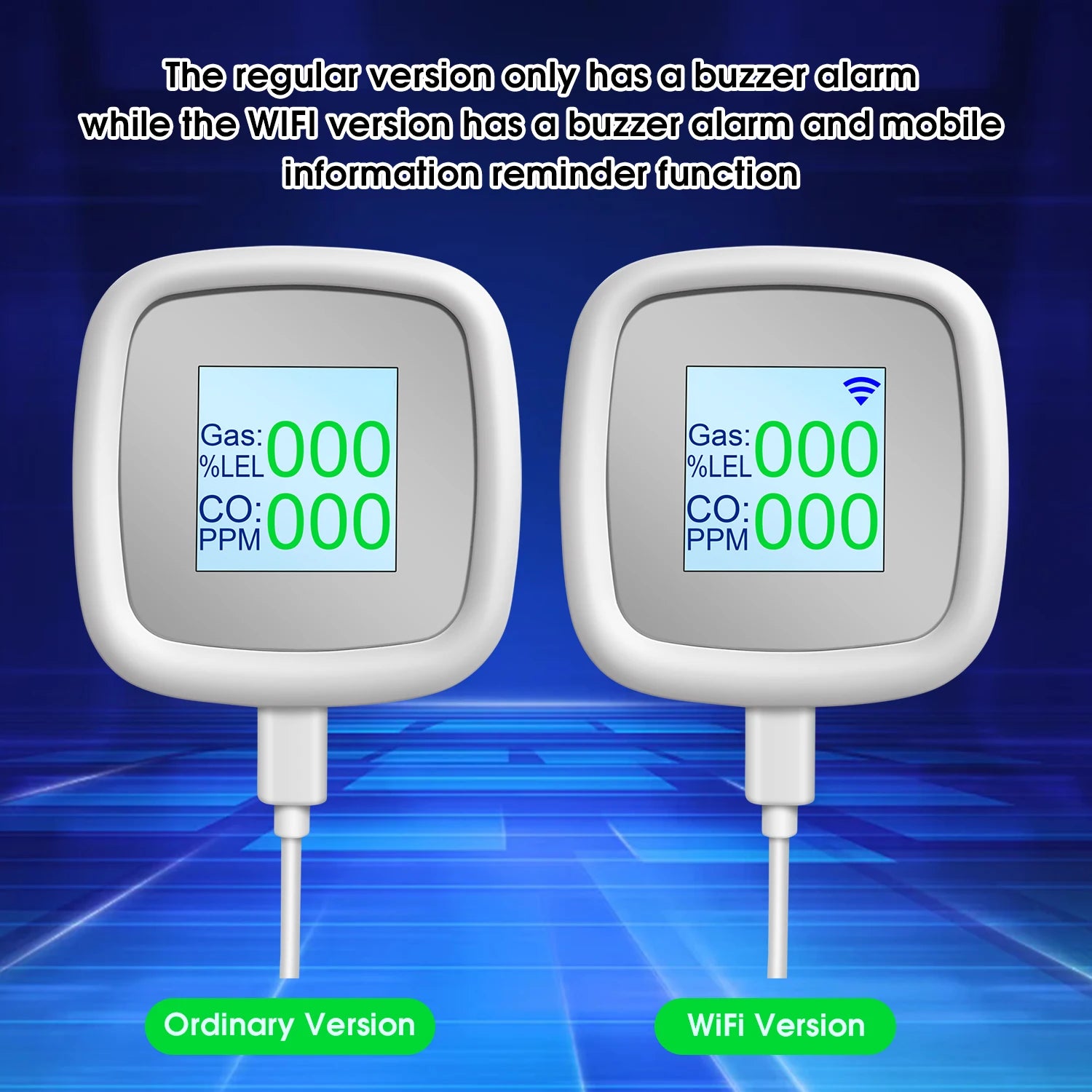

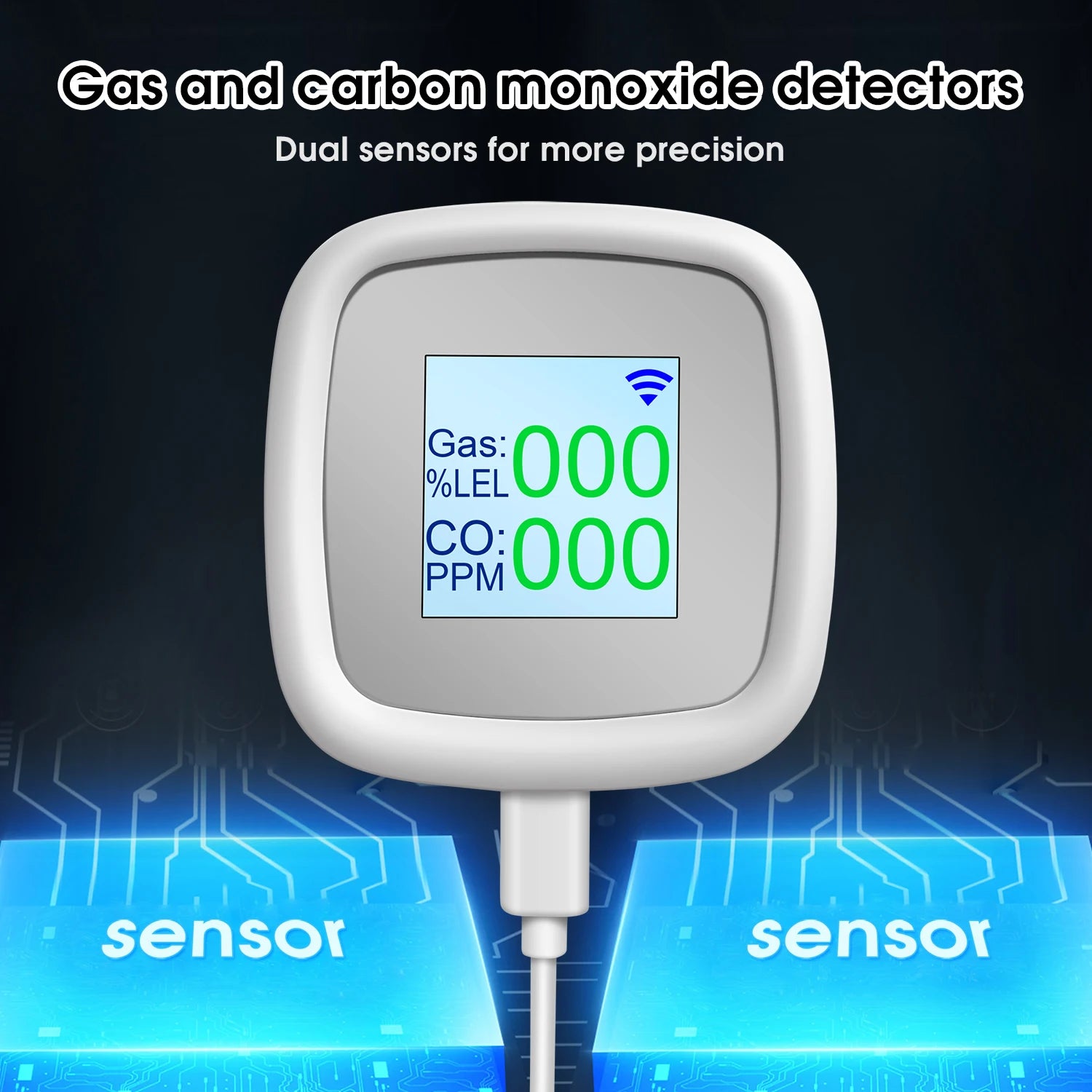

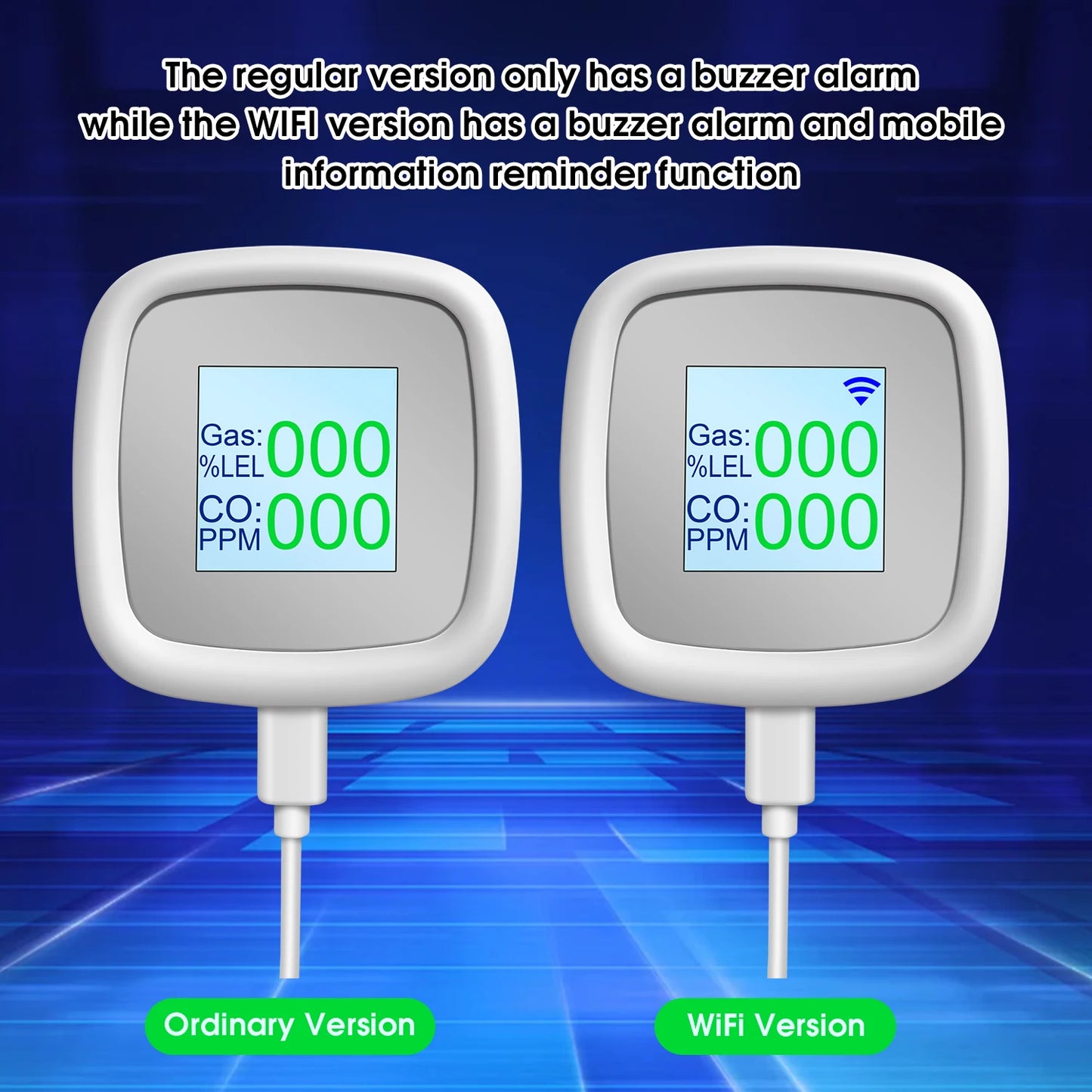

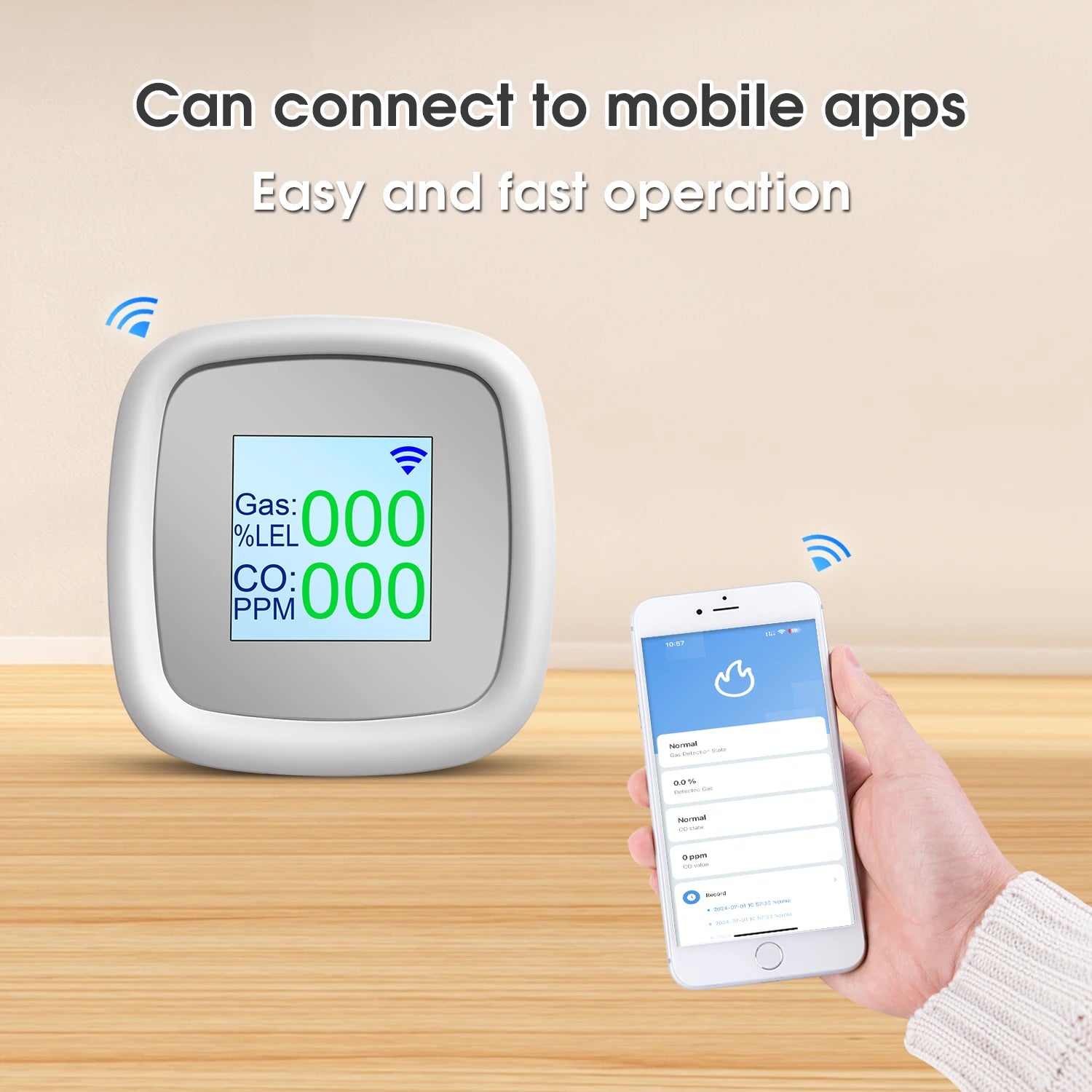

C2 Gas Alarm, with 1.4 inch TFT full color LCD display, can detect methane (natural gas), petroleum liquid and carbon monoxide data, can also be appropriate to detect smoke. Monitor the current environment whether there is a leak or exceed the limit, once detected leakage, the product will have alarm sound alert and cell phone APP message alert (WIFI version).WIFI version can be remote monitoring data, users only need to network the product to realize intelligent monitoring.

Product Characteristics

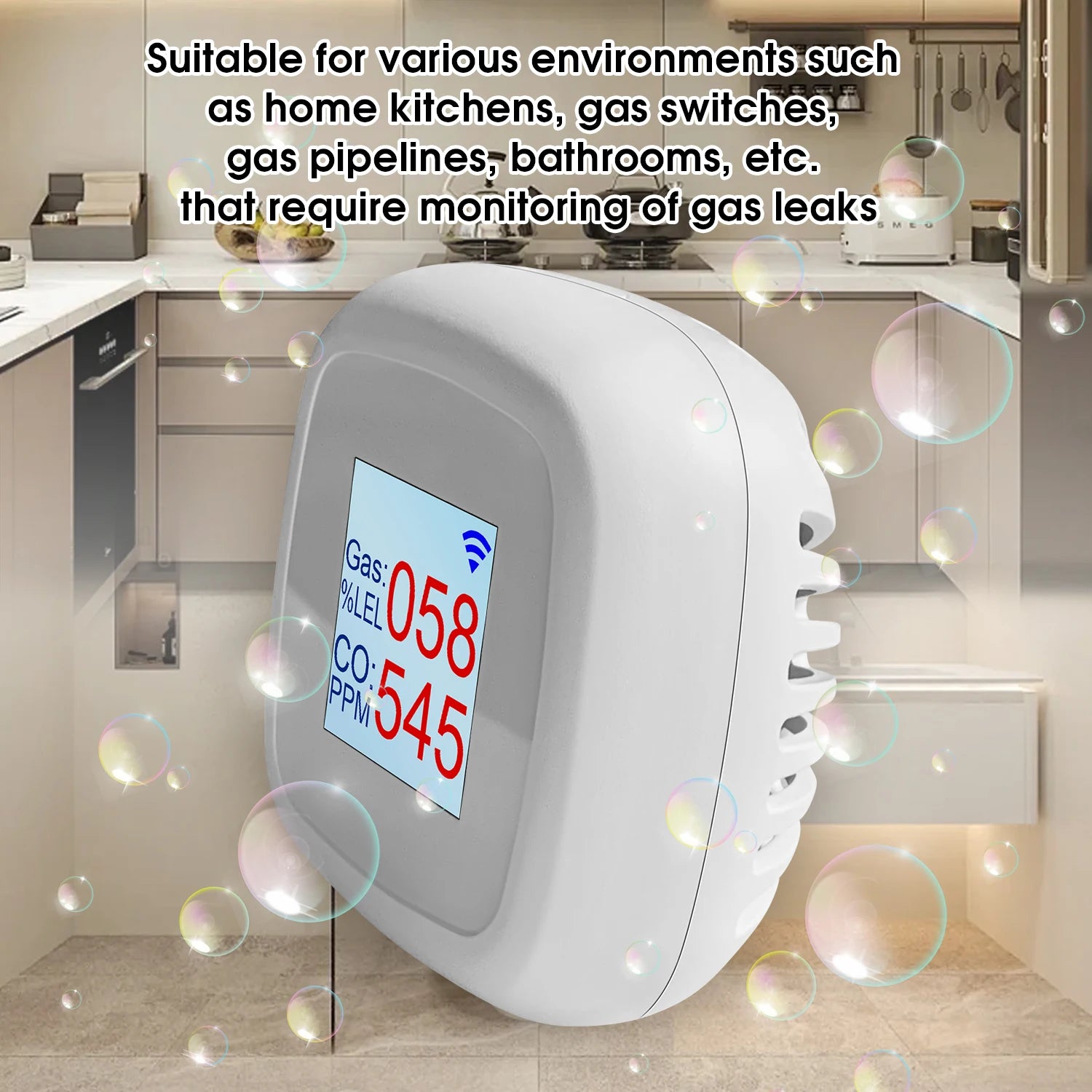

The product appearance is beautiful and atmospheric, the body adopts three-dimensional square design, comfortable grip, flexible buttons, the overall proportion of balanced, simple and intuitive interface, can be suitable for kitchens, bathrooms, gas rooms, gas pipelines, and other indoor or outdoor environments;

Specification

Product Name ： Combustible Gas and Carbon Monoxide Alarms

Model : C2/C2-WIFI（Connect to your cell phone and use the "Tuya Smart" app.）

Color :White

Display : 1.4 inch TFT full color LED backlight LCD screen

Methane (gas) measuring range: 0-100%LEL

Carbon monoxide measurement range: 0-1000PPM

Display size: 28.1mm * 32.64mm * 2.43mm

Display resolution: 128(3RGB)*128

Dimension: 65mm*65mm*30mm

Weight :41g

WI-FI/Bluetooth Standard:802.11b/g/n, (Channel 1-14), support Bluetooth 4.2 Low Energy

WIFI frequency: 2.412~2.4835GHz

Interface: USB type-c 5VDC/1A interface

Power supply: Must be plugged into an external DC5V power supply, the product does not have a built-in battery

Instructions for use

1 Power on and off:

The product can be powered on to use, plug in the USB type-c 5VDC can be powered on to use, disconnect the product power off!

2 Function use

After power on, the product shows "warming up", warming up is completed to enter the normal detection state, the gas value and carbon monoxide value are displayed as green "000", for the normal state. After 5 minutes of work, the product enters the screen saver state, and the brightness is minimized.

3 Product key function:

When the product is in alarm state, press the key to eliminate the alarm sound.

When the product is in the screen saver (low brightness) state, press the key to restore the display to normal brightness

Product Packing List

Host *1

USB type-C power cable *1

Instruction manual *1

Certificate of Conformity *1

For the steps of setting alarm information prompts for Tuya Smart mobile application, please refer to the following demonstration video. (Models with WIFI can connect to the mobile application, while models NO WIFI cannot connect to the mobile application)
